Description

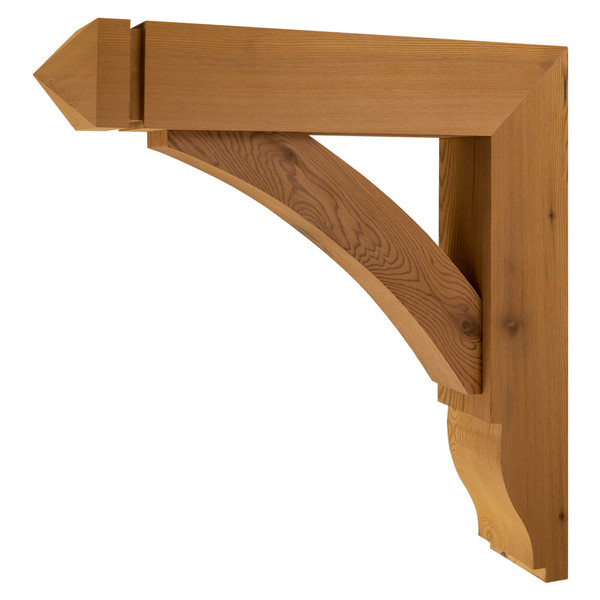

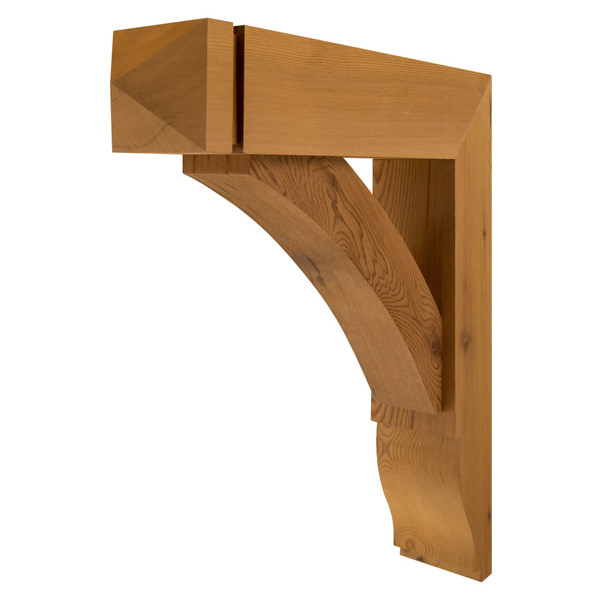

Our Wood Bracket 01T6 delivers a perfect balance of craftsmanship and structural reliability. Made from premium Western Red Cedar, it offers strength, light weight, and visual warmth. With a 20″ projection and 20″ height, this model suits moderate-depth roof or canopy installations that require a compact yet elegant architectural accent.
The design features a double-curve brace joined with exterior-grade fasteners and waterproof adhesive for long-term stability. Western Red Cedar’s natural resistance to decay and insects makes it ideal for outdoor exposure, while its smooth or rough-sawn surface options allow the bracket to match traditional or modern structures alike.
This bracket adds architectural detail under gables, porch roofs, and trellises—enhancing both strength and appearance. Each piece is handcrafted, ensuring the authentic character of solid timber remains visible in every installation.
Applications
- Gable and end-wall accents
- Porch and entry overhangs
- Trellises and pergola supports
- Garage door and window overhangs
- Decorative timber framing
Specifications

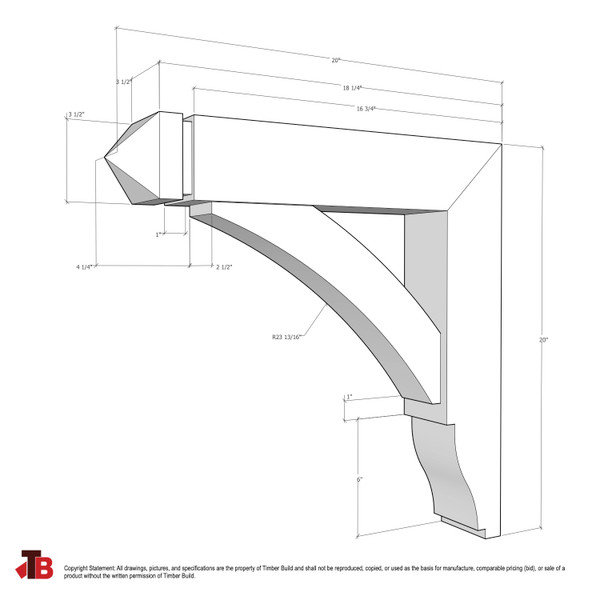

Projection 20″, Height 20″, Thickness 3 1/2″, Brace Thickness 2 1/2″.
Options
Available in Western Red Cedar (standard), Engineered Western Red Cedar, Douglas Fir, Eastern White Pine, Cypress, and Redwood. Choose smooth or rough-sawn finish. Custom sizes and brace configurations are available through Timber Build’s Quick Custom Work Form.
Additional Information
Brace setting: Recessed 1/2″. Body timber: 3 1/2″ × 3 1/2″ (nominal). Each bracket is handcrafted in Lilburn, GA, and ships ready for paint or stain. For larger spans or heavier loads, consult a licensed design professional to verify structural support.
Product Details
Quick Custom Work Form
Need a different Projection, Height, Thickness, or Wood Species? Use this form to request your preferred custom dimensions. Our team will review your details and reply with pricing and lead time. For larger or more detailed projects, please use our full Custom Work Form.
Specifications: Projection 20″, Height 20″, Thickness 3 1/2″, Brace Thickness 2 1/2″. Tip: Select As Listed (No Change) in the form if you’re keeping these dimensions.
3D Model
CAD & SketchUp Downloads
Usage Notice: All drawings and models are © Timber Build, Inc. Provided for reference only to specify Timber Build products for purchase. Manufacturing, fabrication, construction, distribution, reverse engineering, or any other use is prohibited without prior written permission. Licensed design professionals may include these files in plan sets solely to identify Timber Build products for a client’s purchase. Specifications subject to change without notice. All rights reserved.
You’ve accepted the Usage Notice. Files may be used only to reference Timber Build products for purchase. Any other use remains prohibited without prior written permission. Gray buttons after unlocking indicate specific files are not yet available — contact Customer Support for assistance.
Download Drawings
