Description

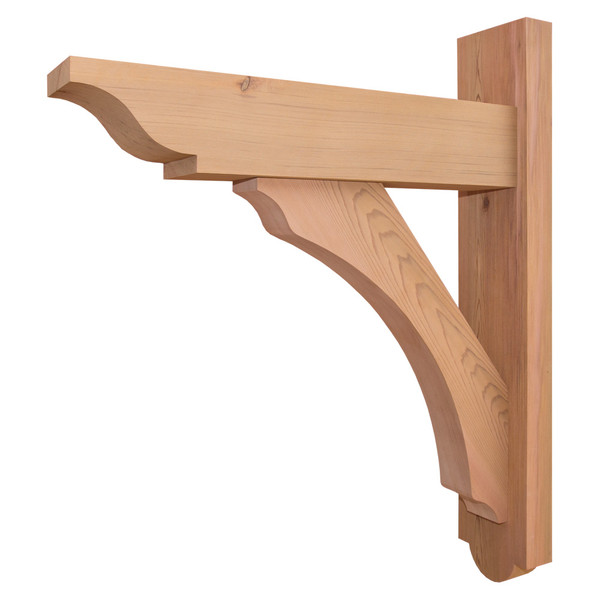

Trellis Wood Bracket 05T2 is engineered for garage pergolas and trellis work—combining a beam-seat top member 5 1/2" x 5 1/2" with a wall post 2 1/2" x 7 1/2" to cradle the holding beam and transfer load cleanly into the structure. With a 32" projection and 40" height, it provides the reach and vertical bearing needed for deep returns and multi-bay trellises. Handcrafted from Western Red Cedar, each unit is precision-joined with waterproof adhesive and exterior-grade screws, and we integrate structurally sound Timber Screw SDWS22 Exterior Grade fasteners within the assembly for long-term performance. Choose a smooth-planed finish for crisp lines or a rough-sawn texture to echo traditional timber character; the brace is set Recessed — Top: 1", Wall: 2" for a clean fit.
Applications
- Garage pergolas with beam-on-bracket support
- Trellis bays and eyebrow roof accents
- Entry canopies and deep wall returns
- Decorative eaves and architectural highlights
Specifications

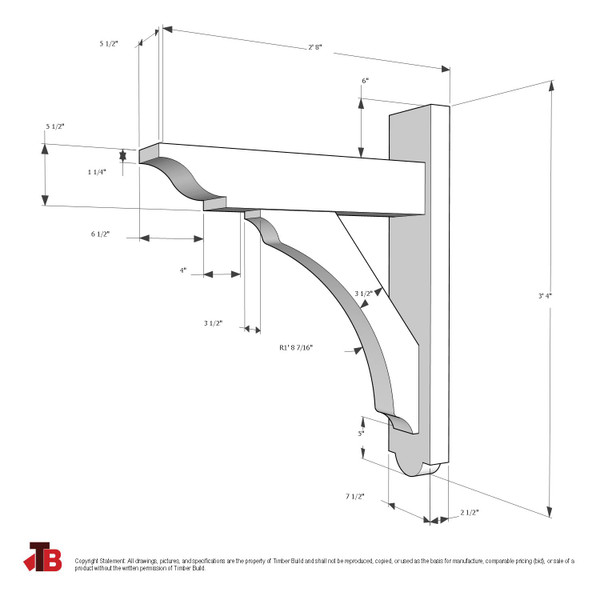

Projection 32", Height 40", Thickness 7 1/2", Brace Thickness 3 1/2", Brace Setting Recessed — Top: 1", Wall: 2", Body Timber (Top) 5 1/2" x 5 1/2", Body Timber (Wall) 2 1/2" x 7 1/2".
Options
Available in Western Red Cedar (standard), Engineered Western Red Cedar, Douglas Fir, Eastern White Pine, Cypress, Redwood, and more. Choose a smooth or rough-sawn finish. To explore all available options, visit our Product Options page.
Custom dimensions and additional wood species can be requested using the Quick Custom Work Form available on this page, or by contacting Customer Support. For more complex products or to start a project, please use our Project Form or reach out to Customer Support for assistance.
Materials & Craftsmanship
Brace setting: Recessed — Top: 1", Wall: 2". Body timber (Top): 5 1/2" x 5 1/2". Body timber (Wall): 2 1/2" x 7 1/2". Each Timber Build piece is handcrafted from real wood, showcasing natural grain and color variations—hallmarks of its authenticity and character. These organic differences make every item unique and add depth to its appearance.
Care & Finish
To ensure longevity and protect the wood, we recommend finishing your piece with a high-quality exterior coating. For best results, follow our care and finishing guide: How to Finish Cedar .
Product Details
Quick Custom Work Form
Need a different Projection, Height, Thickness, Brace Thickness, or Wood Species? Use this form to request your preferred custom dimensions. Our team will review your details and reply with pricing and lead time. For larger or more detailed projects, please use our full Custom Work Form.
Specifications for Trellis Wood Bracket 05T2: Projection 32", Height 40", Thickness 7 1/2", Brace Thickness 3 1/2". Tip: Select As Listed (No Change) in the form if you’re keeping these dimensions.
3D Model
CAD & SketchUp Downloads
Usage Notice: All drawings and models are © Timber Build, Inc. Provided for reference only to specify Timber Build products for purchase. Manufacturing, fabrication, construction, distribution, reverse engineering, or any other use is prohibited without prior written permission. Licensed design professionals may include these files in plan sets solely to identify Timber Build products for a client’s purchase. Specifications subject to change without notice. All rights reserved.
You’ve accepted the Usage Notice. Files are provided solely for referencing Timber Build products intended for purchase. Any other use is prohibited without prior written permission. If a gray button appears after unlocking, it means that specific file is not yet available. To request CAD drawings, please use our online form or contact Customer Support for assistance.
Download Drawings
