Description
Trellis Wood Bracket 05T5 is purpose-built for garage pergolas—pairing a beam-seat top member 3 1/2" x 5 1/2" with a wall post 1 1/2" x 5 1/2" to cradle the holding beam and transfer load cleanly into the structure. With a 24 1/2" projection and 34" height, it provides the reach and vertical bearing needed for trellis bays, eyebrow roofs, and deep returns. Handcrafted from durable Western Red Cedar, each unit is precision-joined with waterproof adhesive and exterior-grade screws, and for builds at this scale we integrate structurally sound Timber Screw SDWS22 Exterior Grade fasteners within the assembly for long-term performance; the brace is set Recessed - Top: 1/2", Wall: 1" for a clean fit. Choose a smooth-planed finish for crisp lines or a rough-sawn texture to echo traditional timber character.
Applications
- Garage pergolas with beam-on-bracket support
- Trellis bays and eyebrow roof accents
- Entry canopies and deep wall returns
- Decorative eaves and architectural highlights
Specifications
Projection 24 1/2", Height 34", Thickness 5 1/2", Brace Thickness 2 1/2", Brace Setting Recessed - Top: 1/2", Wall: 1", Body Timber (Top) 3 1/2" x 5 1/2", Body Timber (Wall) 1 1/2" x 5 1/2".
Options
Available in Western Red Cedar (standard), Engineered Western Red Cedar, Douglas Fir, Eastern White Pine, Cypress, Redwood, and more. Choose a smooth or rough-sawn finish. To explore all available options, visit our Product Options page.
Custom dimensions and additional wood species can be requested using the Quick Custom Work Form available on this page, or by contacting Customer Support. For more complex products or to start a project, please use our Project Form or reach out to Customer Support for assistance.
Materials & Craftsmanship
Brace setting: Recessed - Top: 1/2", Wall: 1". Body timber (Top): 3 1/2" x 5 1/2". Body timber (Wall): 1 1/2" x 5 1/2". Each Timber Build piece is handcrafted from real wood, showcasing natural grain and color variations—hallmarks of its authenticity and character. These organic differences make every item unique and add depth to its appearance.
Care & Finish
To ensure longevity and protect the wood, we recommend finishing your piece with a high-quality exterior coating. For best results, follow our care and finishing guide: How to Finish Cedar .
Product Details
Quick Custom Work Form
Need a different Projection, Height, Thickness, Brace Thickness, or Wood Species? Use this form to request your preferred custom dimensions. Our team will review your details and reply with pricing and lead time. For larger or more detailed projects, please use our full Custom Work Form.
Specifications for Trellis Wood Bracket 05T5: Projection 24 1/2", Height 34", Thickness 5 1/2", Brace Thickness 2 1/2". Tip: Select As Listed (No Change) in the form if you’re keeping these dimensions.
3D Model

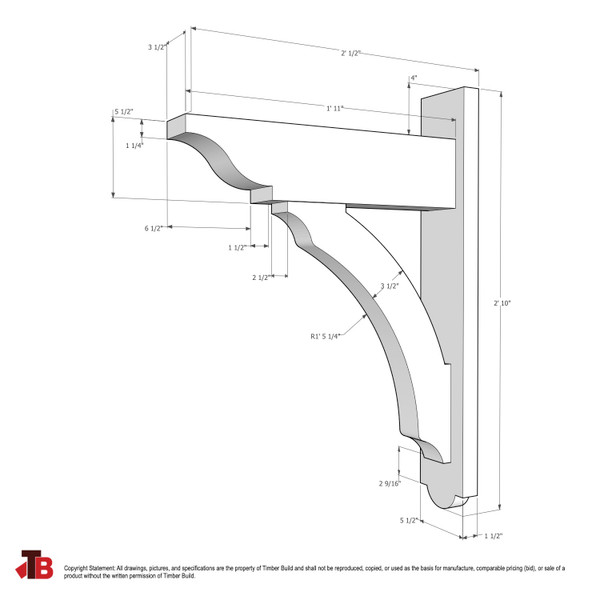

CAD & SketchUp Downloads
