Description

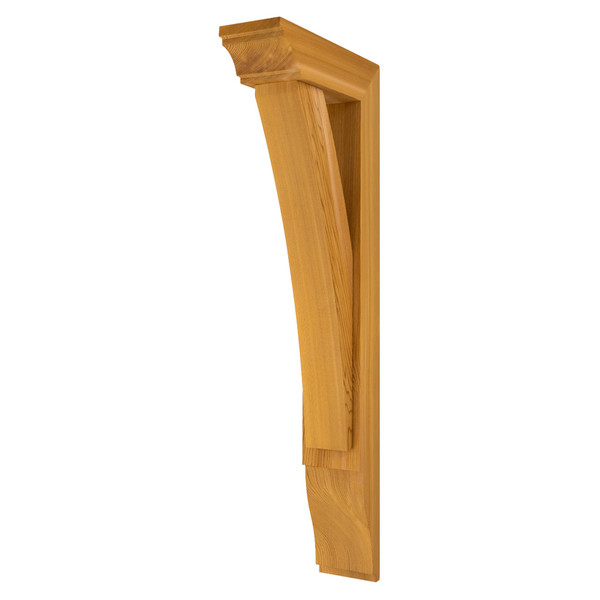

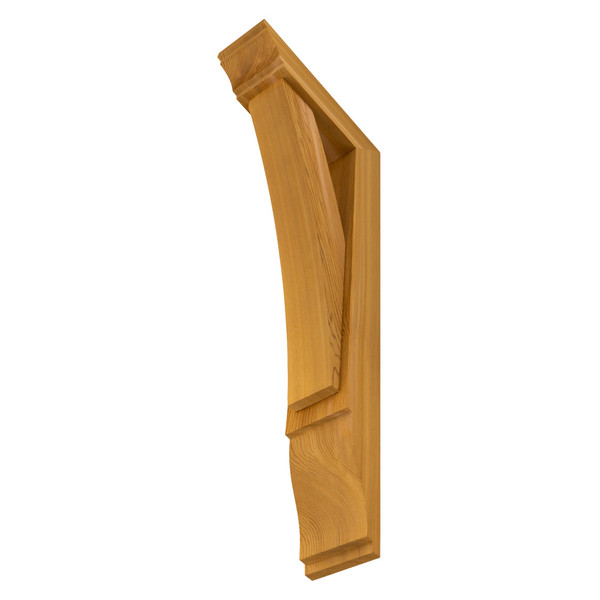

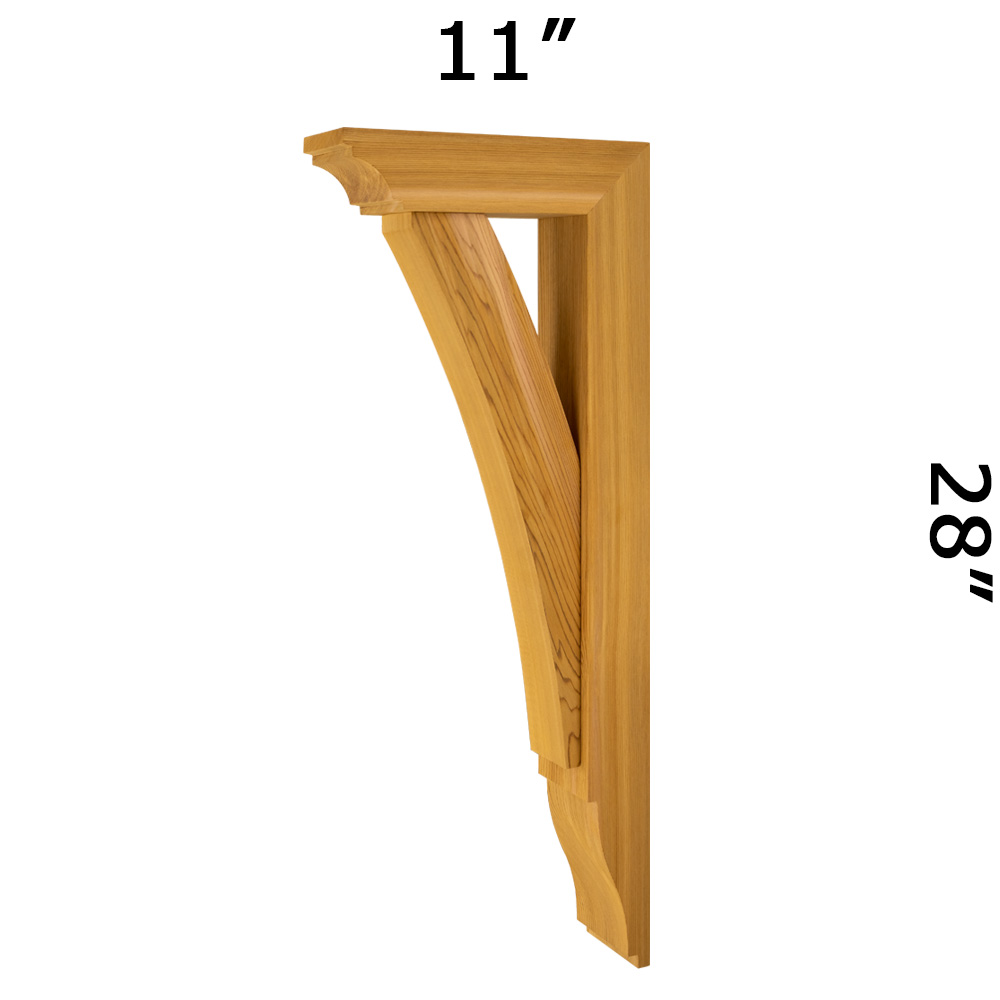

Our Wood Bracket 02T3 combines architectural balance with compact strength, ideal for installations where space is limited. With an 11" projection and 28" height, it provides strong vertical support without extending too far, making it perfect for soffits, narrow overhangs, or decorative accents under smaller canopies. Crafted from durable Western Red Cedar, this bracket offers both structural reliability and natural beauty.
Each Timber Build bracket is assembled with structurally sound Timber Screw SDWS22 Exterior Grade fasteners and waterproof adhesive to ensure long-term performance. The wood is selected for grain consistency and stability, then precision-cut for uniformity. Choose between a smooth-planed surface for a clean, modern appearance or a rough-sawn texture for a more traditional timber look.
Western Red Cedar’s natural resistance to decay and insects makes it ideal for exterior use. Its lightweight strength simplifies installation while preserving excellent load capacity. Whether used under a gable, canopy, or decorative roofline, this bracket delivers classic proportion and reliability.
Applications
- Porch and entry canopies
- Soffits and decorative eaves
- Trellises and pergolas
- Garage door overhangs
- Architectural timber accents
Specifications

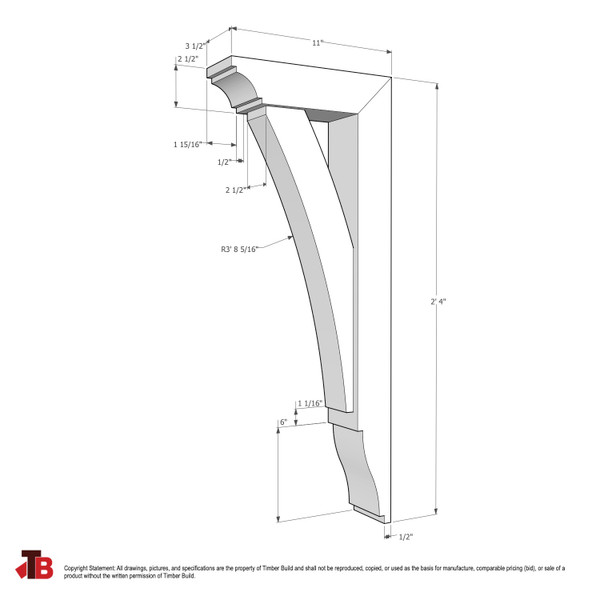

Projection 11", Height 28", Thickness 3 1/2", Brace Thickness 2 1/2".
Options
Available in Western Red Cedar (standard), Engineered Western Red Cedar, Douglas Fir, Eastern White Pine, Cypress, and Redwood. Custom projections, heights, and brace thicknesses are available through Timber Build’s Quick Custom Work Form. Smooth or rough-sawn finish options available to match your project style.
Additional Information
Brace setting: Recessed 1/2". Body timber: 2 1/2" × 3 1/2" (nominal). Each bracket is handcrafted, allowing for natural variations in grain and tone. Ships ready for paint or stain. Designed and manufactured in Lilburn, GA.
Product Details
Quick Custom Work Form
Need a different Projection, Height, Thickness, or Wood Species? Use this form to request your preferred custom dimensions. Our team will review your details and reply with pricing and lead time. For larger or more detailed projects, please use our full Custom Work Form.
Specifications: Projection 11", Height 28", Thickness 3 1/2", Brace Thickness 2 1/2". Tip: Select As Listed (No Change) in the form if you’re keeping these dimensions.
3D Model
CAD & SketchUp Downloads
Usage Notice: All drawings and models are © Timber Build, Inc. Provided for reference only to specify Timber Build products for purchase. Manufacturing, fabrication, construction, distribution, reverse engineering, or any other use is prohibited without prior written permission. Licensed design professionals may include these files in plan sets solely to identify Timber Build products for a client’s purchase. Specifications subject to change without notice. All rights reserved.
You’ve accepted the Usage Notice. Files may be used only to reference Timber Build products for purchase. Any other use remains prohibited without prior written permission. Gray buttons after unlocking indicate specific files are not yet available — contact Customer Support for assistance.
Download Drawings
