Description

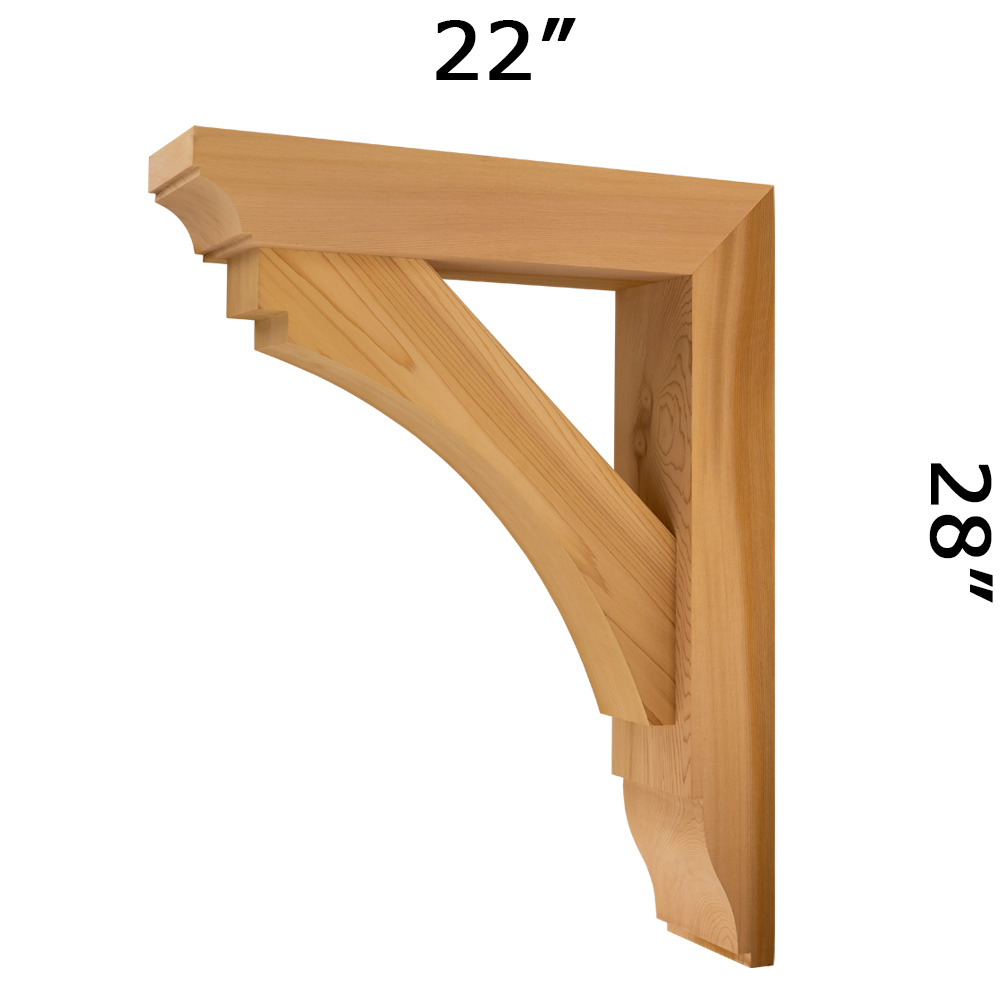

Our Wood Bracket 02T4 brings together timeless craftsmanship and architectural strength. Built from genuine Western Red Cedar, this bracket balances durability with natural warmth—perfect for customers who value both structure and style. With a 22" projection and 28" height, it’s designed for medium-depth roof or canopy support while preserving a balanced visual proportion.

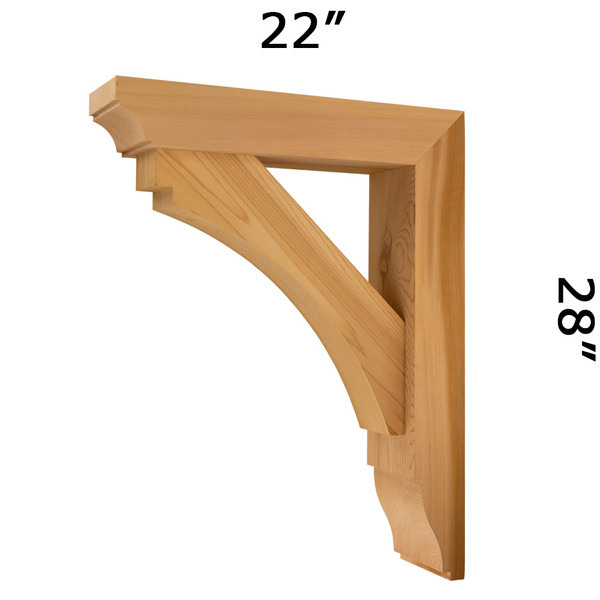

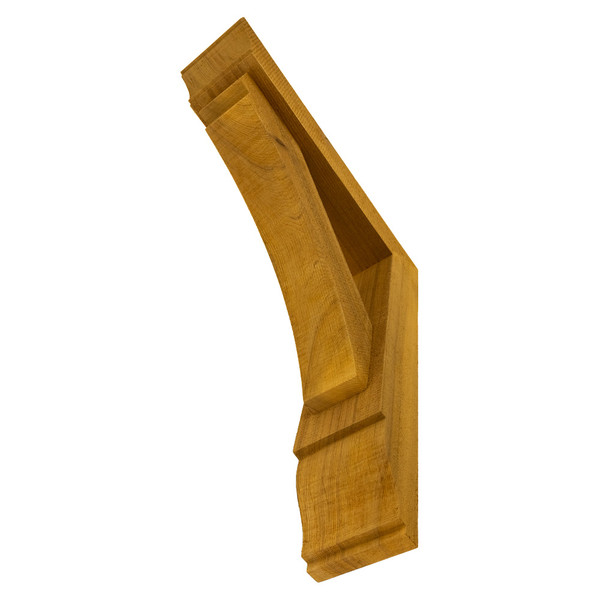

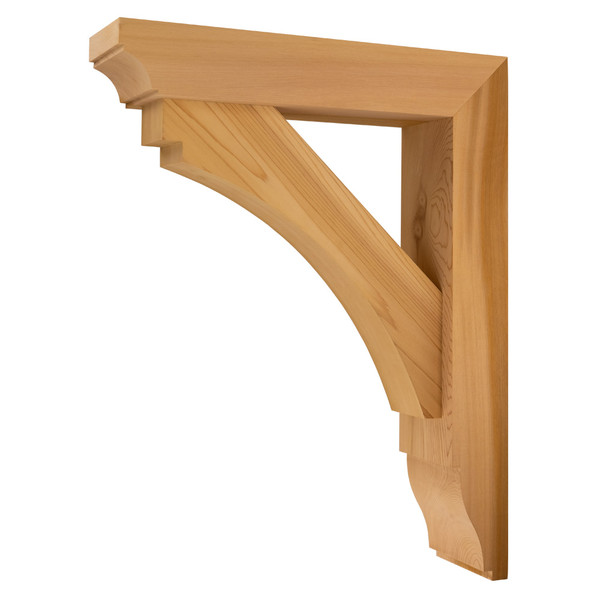

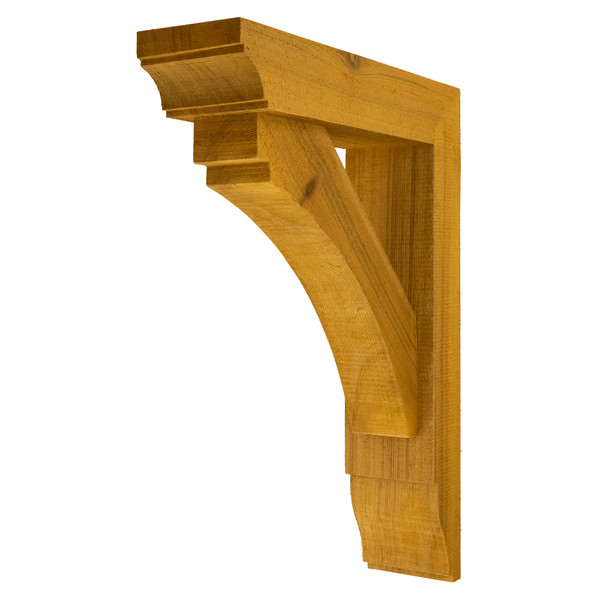

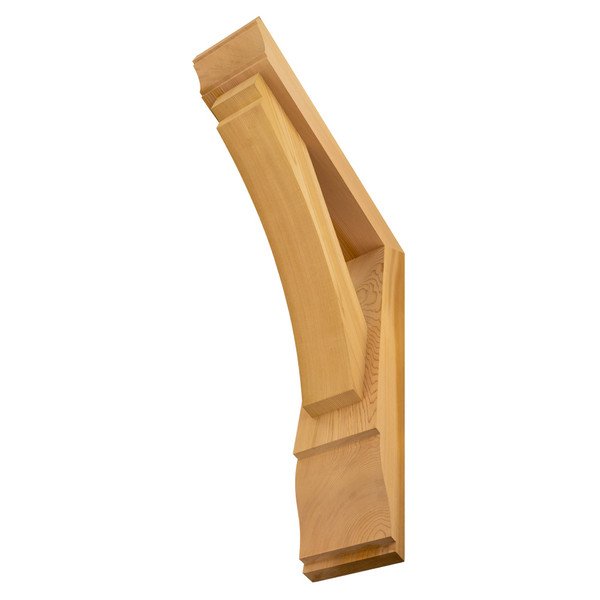

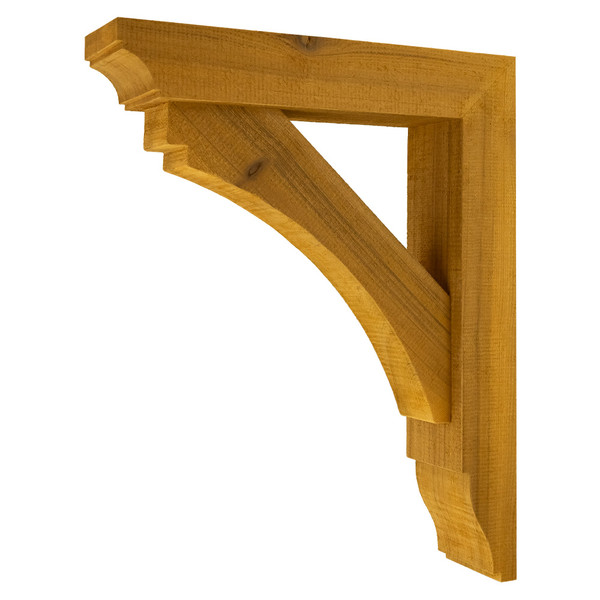

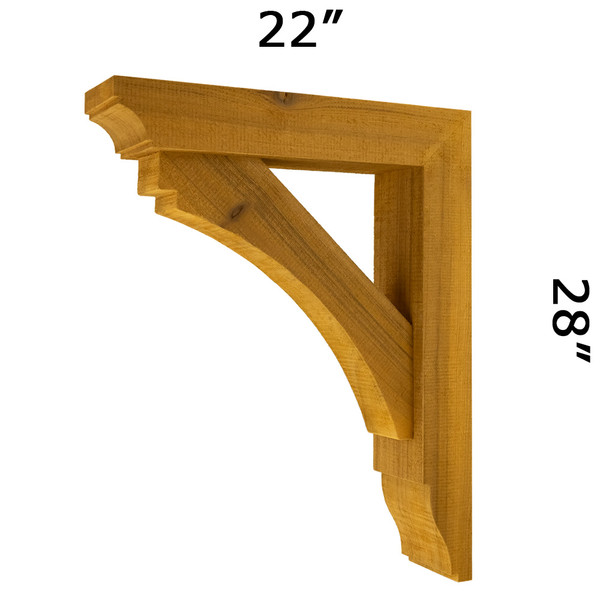

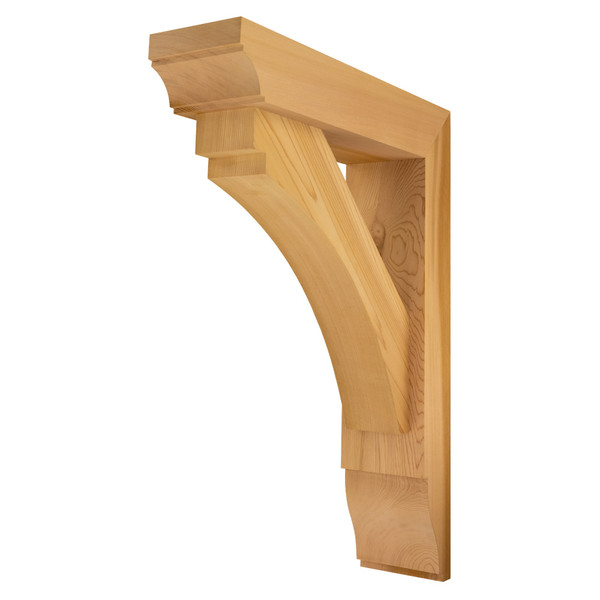

Each Timber Build bracket is carefully joined with exterior-grade screws and waterproof adhesive for long-term stability in outdoor conditions. The wood is selected for tight grain and rich color variation, resulting in a piece that looks refined even before finishing. Choose a smooth-planed surface for a clean, contemporary appearance, or a rough-sawn texture for projects that highlight traditional timber character.

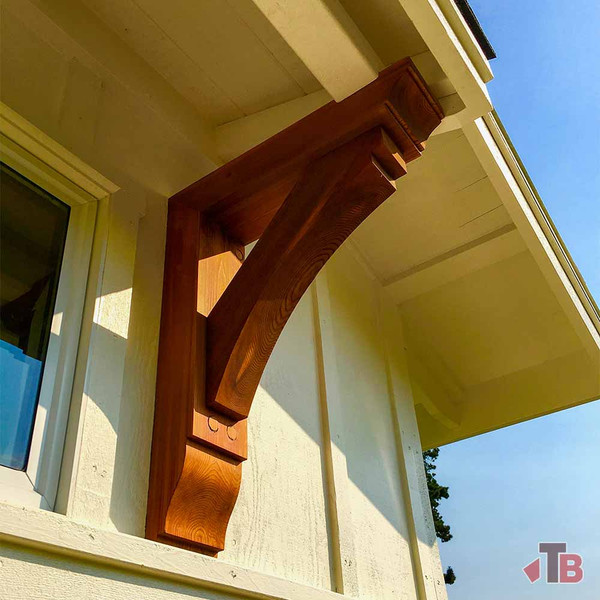

Western Red Cedar is naturally resistant to decay and insects, making it ideal for long-term outdoor performance. The material’s lightweight strength allows easy installation while maintaining superior dimensional stability. Whether installed under a porch roof, trellis, or entry canopy, this bracket adds architectural definition that enhances any façade.
Applications
- Porch and entry canopies
- Garage door overhangs
- Trellises and pergolas
- Roof overhangs and decorative eaves
- Architectural timber accents
Specifications

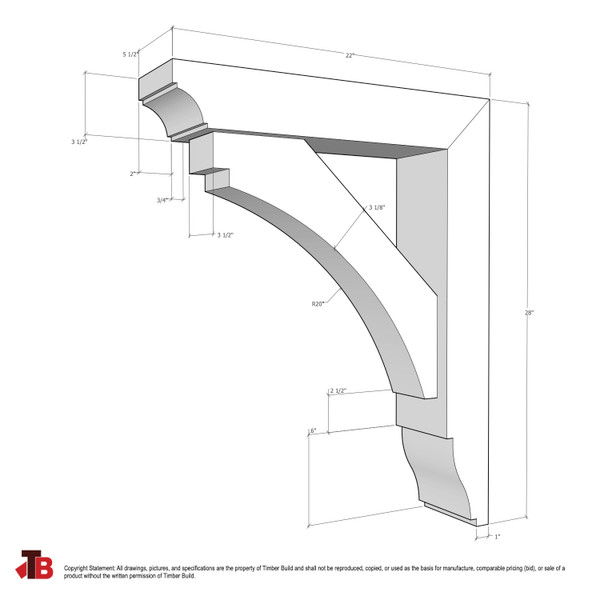

Projection 22", Height 28", Thickness 5 1/2", Brace Thickness 3 1/2".
Options
Available in Western Red Cedar (standard), Engineered Western Red Cedar, Douglas Fir, Eastern White Pine, Cypress, and Redwood. Each piece can be ordered smooth or rough-sawn to complement your project’s finish style. Custom projections, heights, and brace thicknesses are available on request through Timber Build’s Quick Custom Work Form.
Additional Information
Brace setting: Recessed 1". Body timber: 3 1/2" × 5 1/2" (nominal). Natural variations in grain, color, and texture are expected with real wood. Products ship ready for paint or stain. Verify wall and substrate strength before mounting. For deeper projections or heavier loads, coordinate final sizing and connection details with a qualified design professional.
Designed, built, and finished in Lilburn, GA, Timber Build products represent the quality and pride of American craftsmanship—made to enhance both the strength and beauty of residential and commercial projects.
Product Details
Quick Custom Work Form
Need a different Projection, Height, Thickness, or Wood Species? Use this form to request your preferred custom dimensions. Our team will review your details and reply with pricing and lead time. For larger or more detailed projects, please use our full Custom Work Form.
Specifications: Projection 22", Height 28", Thickness 5 1/2", Brace Thickness 3 1/2". Tip: Select As Listed (No Change) in the form if you’re keeping these dimensions.
3D Model
CAD & SketchUp Downloads
Usage Notice: All drawings and models are © Timber Build, Inc. Provided for reference only to specify Timber Build products for purchase. Manufacturing, fabrication, construction, distribution, reverse engineering, or any other use is prohibited without prior written permission. Licensed design professionals may include these files in plan sets solely to identify Timber Build products for a client’s purchase. Specifications subject to change without notice. All rights reserved.
You’ve accepted the Usage Notice. Files may be used only to reference Timber Build products for purchase. Any other use remains prohibited without prior written permission. Gray buttons after unlocking indicate specific files are not yet available — contact Customer Support for assistance.
Download Drawings
