Description

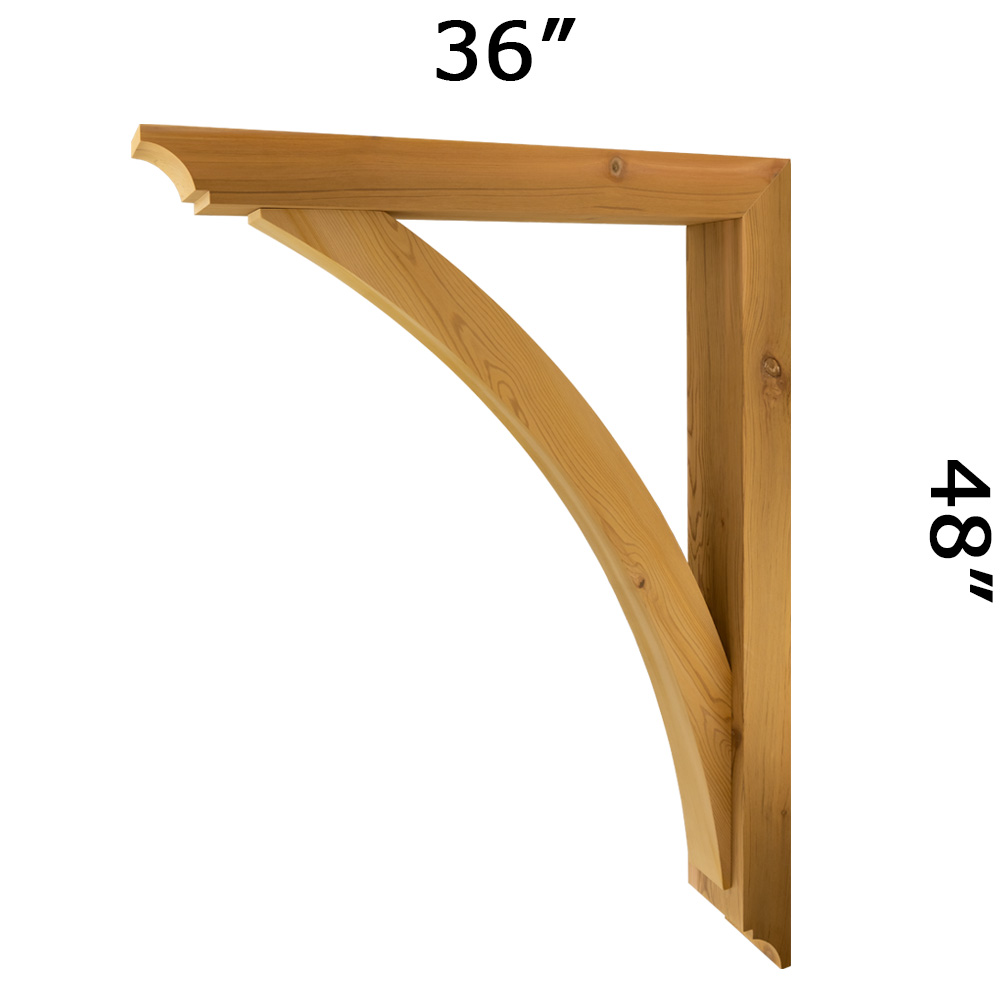

Wood Bracket 03T10X delivers a bold architectural presence for deeper canopies, generous overhangs, and statement entries. With a 36" projection and 48" height, this large-format profile offers confident support and a refined silhouette suited to Craftsman, Lodge, and Modern Rustic designs.

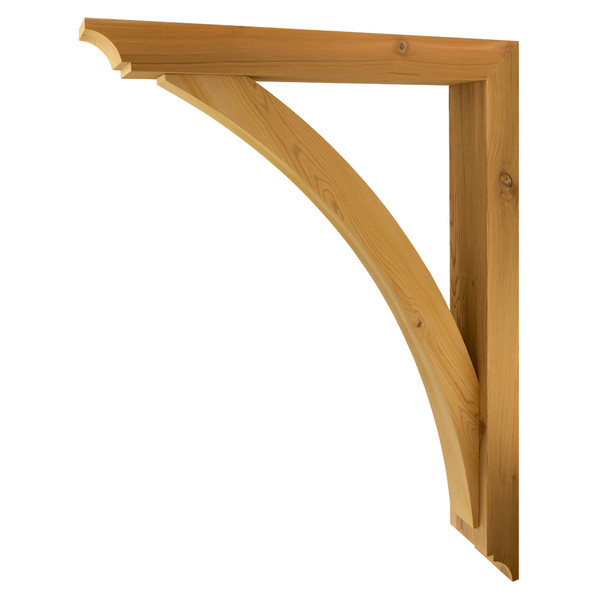

Built from Western Red Cedar for outdoor durability and dimensional stability, the bracket features a recessed 1" brace set into a 3 1/2" × 5 1/2" body. For enhanced structural integrity on substantial spans, we assemble with structurally sound Timber Screw SDWS22 Exterior Grade fasteners and waterproof adhesive. Choose a smooth-planed surface for a crisp, architectural look or a rough-sawn texture to highlight natural grain.
Applications
- Deep porch and entry canopies
- Large roof overhangs and gable accents
- Pergolas and heavy trellis intersections
- Commercial façades seeking warm timber detail
Specifications

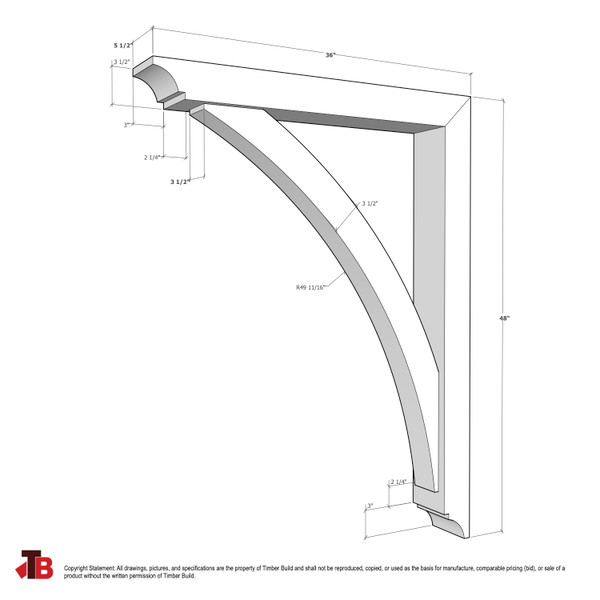

Projection 36", Height 48", Thickness 5 1/2", Brace Thickness 3 1/2", Brace Setting Recessed 1", Body Timber 3 1/2" × 5 1/2".
Options
Offered in Western Red Cedar, Engineered Western Red Cedar, Douglas Fir, Cypress, Redwood, and Eastern White Pine. Custom dimensions available on request to match projection, height, or brace thickness requirements.
Natural Beauty & Care
Every Timber Build piece begins as real wood, so natural variations in grain and tone are expected. For longevity, apply a protective finish to all surfaces prior to installation and maintain per exposure conditions. See our Cedar Finishing Guide.
Product Details
Quick Custom Work Form
Need this bracket tailored to your project? Send your preferred projection, height, or wood species and we’ll respond with pricing and lead time.
Specifications: Projection 36", Height 48", Thickness 5 1/2", Brace Thickness 3 1/2". Tip: Select As Listed (No Change) if these are your final dimensions.
3D Model
CAD & SketchUp Downloads
Usage Notice: All drawings and models are © Timber Build, Inc. Provided for reference only to specify Timber Build products for purchase. Manufacturing, fabrication, construction, distribution, reverse engineering, or any other use is prohibited without prior written permission. Licensed design professionals may include these files in plan sets solely to identify Timber Build products for a client’s purchase. Specifications subject to change without notice. All rights reserved.
You’ve accepted the Usage Notice. Files may be used only to reference Timber Build products for purchase. Any other use remains prohibited without prior written permission. Gray buttons after unlocking indicate specific files are not yet available — contact Customer Support for assistance.
Download Drawings
