Description

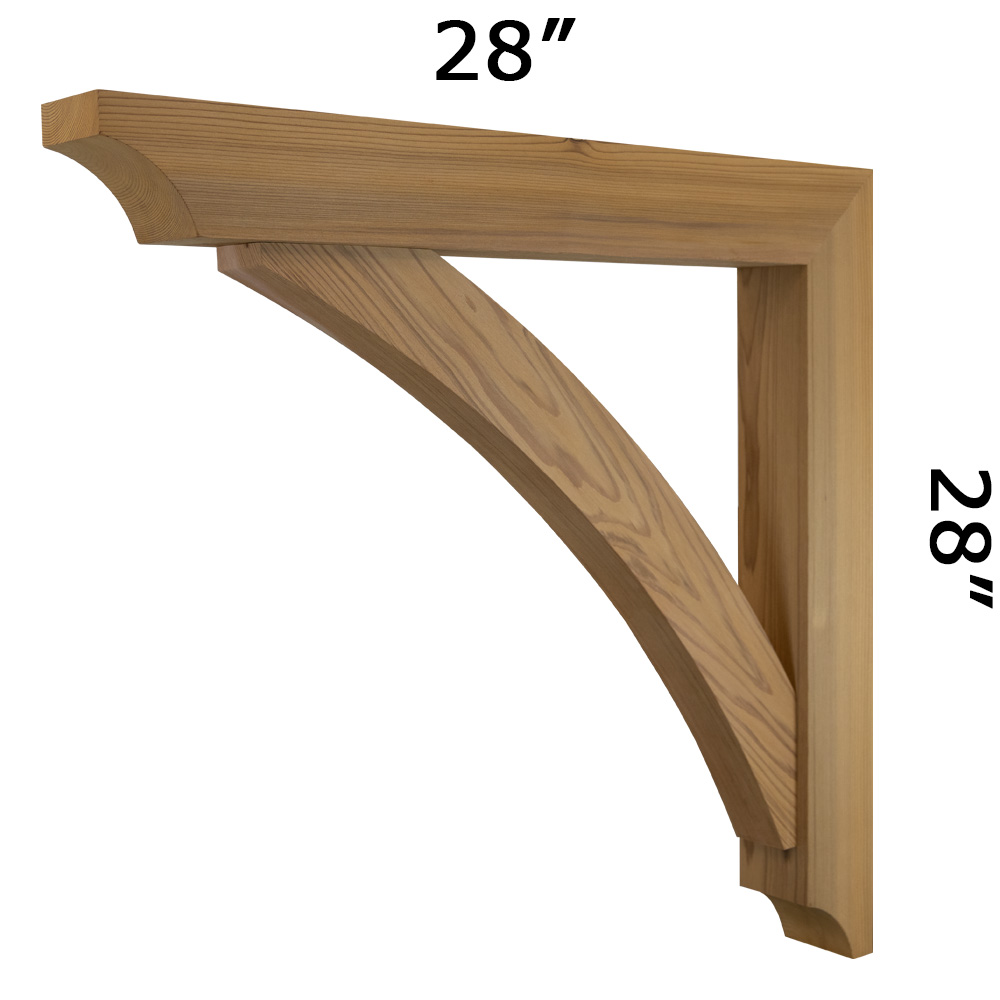

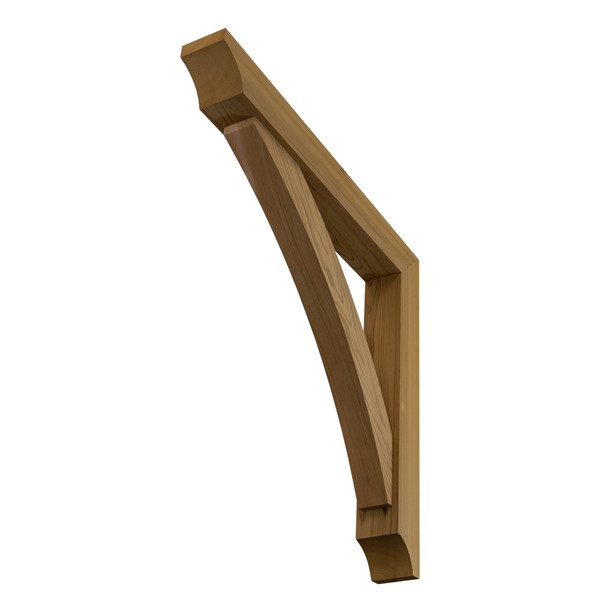

The Wood Bracket 04T11 offers a balanced 28" projection and 28" height, giving it a clean, proportional profile suited for porch overhangs, pergola beams, and fascia extensions. This model is part of our 04T Collection, known for its refined shaping and dependable structural performance. The brace is recessed 1/2" into the body, creating a seamless visual transition and reinforcing long-term durability.
Because of its larger size, this bracket is constructed using structurally sound Timber Screw SDWS22 Exterior Grade fasteners, ensuring strong mechanical reinforcement suitable for outdoor architectural applications.
Each bracket is crafted from real wood — expect subtle grain variation that gives every piece character. Choose your preferred surface finish to pair with your stain or paint system.
Applications
- Front porch roof support
- Extended eave and gable details
- Decorative pergola and patio covers
- Deep awning or canopy projections
- Outdoor timber framing enhancements
Specifications
Projection 28", Height 28", Thickness 3 1/2", Brace Thickness 2 1/2", Brace Setting Recessed 1/2", Body Timber 3 1/2" × 3 1/2".
Options
- Surface finish: Smooth or Rough Sawn
- Wood selection: Western Red Cedar or Douglas Fir
- Optional premium color matching available for stain-forward projects
Natural Beauty & Care
Every Timber Build bracket begins as genuine wood, so natural features like grain pattern, tone shifts, and small knots may appear. These details are considered part of the wood’s character. If applying stain, we recommend a penetrating oil-based system. If painting, select the Smooth finish and a suitable primer.
For stain guidance, see our recommended approach: How to Finish Cedar.
Product Details
Quick Custom Work Form
Need this bracket tailored to your project? Send your preferred projection, height, or wood species and we’ll respond with pricing and lead time.
Specifications: Projection 28", Height 28", Thickness 3 1/2", Brace Thickness 2 1/2". Tip: Select As Listed (No Change) in the form if you’re keeping these dimensions.
