Pergola Corner Connector 6x6 - Sage-C (2-Pack)

Model: SAGE-C — Designed for S4S or Rough Sawn (RS) lumber in nominal 6×6 (SAGE-C66) size. Not compatible with Timber Build’s TR Finish.

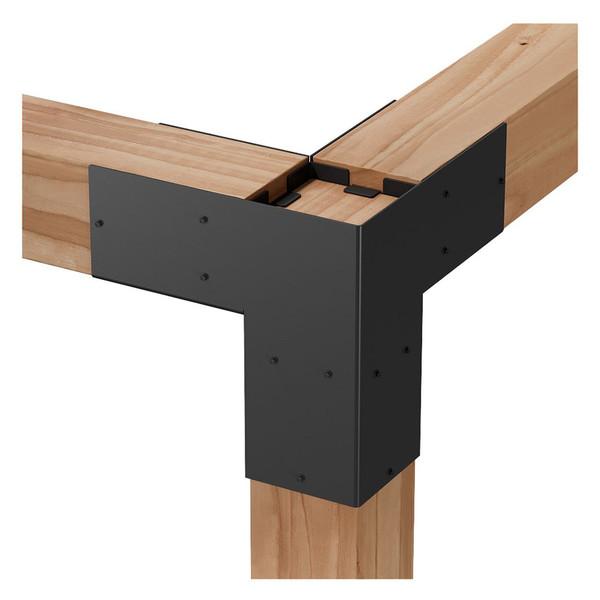

The Outdoor Accents® Sage System™ Sage-C corner connector is fabricated from heavy-duty 12-ga ZMAX®-galvanized steel with a matte black powder-coat finish. This code-listed connector joins two beams to a wood post at precise three-way 90° angles, combining structural strength with a clean, modern aesthetic.

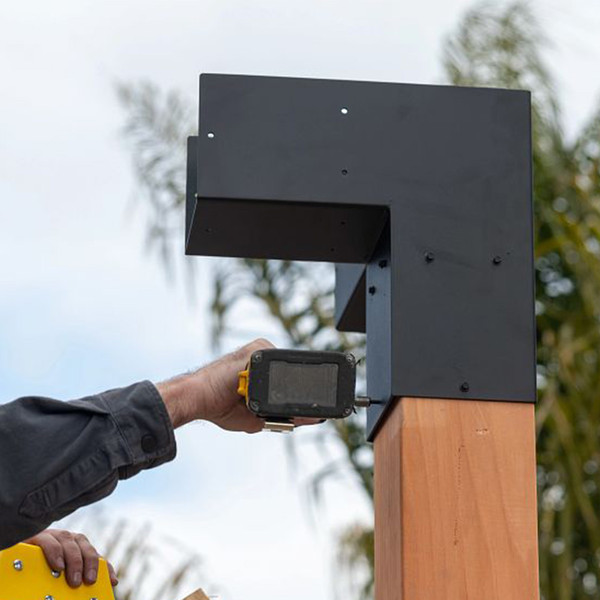

The open-top design simplifies installation—allowing top-down or ground-up assembly and accommodating minor lumber variances. Each package includes (2) corner connectors, color-matched 1½″ Outdoor Accents connector screws (SD10112DBB), and a ¼″ hex driver bit for a complete, professional-grade installation.

Manufacturing Notes: Part of the Simpson Strong-Tie Outdoor Accents Sage System™, the Sage-C corner connector is engineered for long-term durability and consistent alignment. ZMAX® galvanization and black powder-coat finish ensure superior corrosion resistance in outdoor environments.

Key Features:

• Three-way 90° corners for secure post-to-beam connections
• Open-top design for top-down or ground-up installation flexibility
• 12-ga ZMAX®-galvanized steel with matte black powder-coat for corrosion resistance
• Includes color-matched SD10112DBB 1½″ connector screws and hex driver bit
• Compatible with S4S and RS finish posts

Common uses:

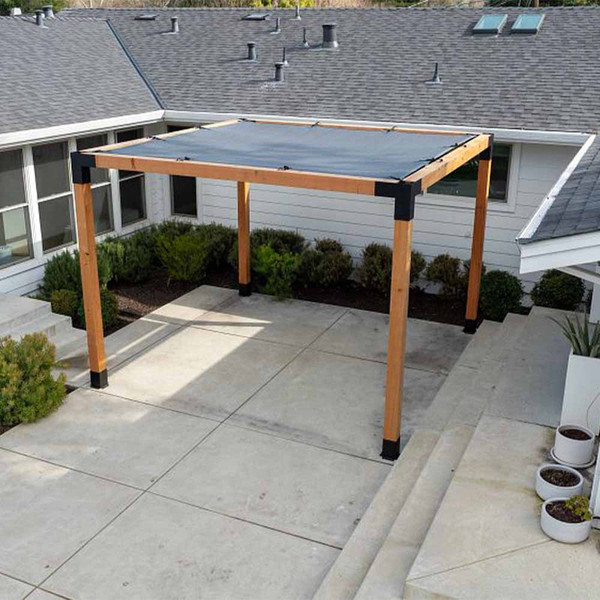

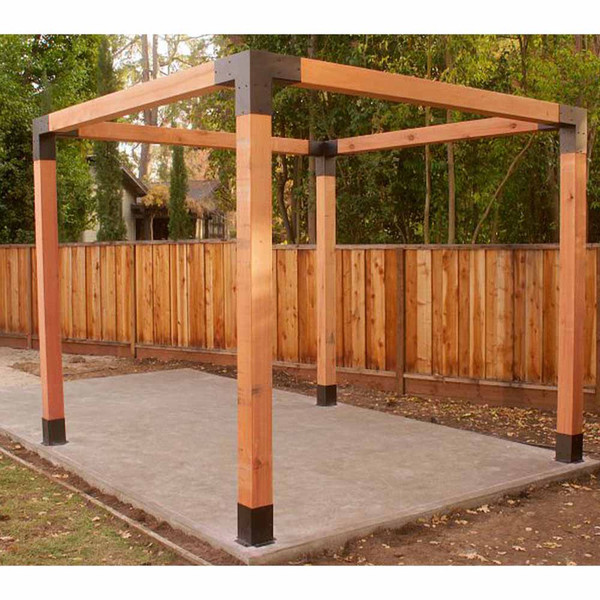

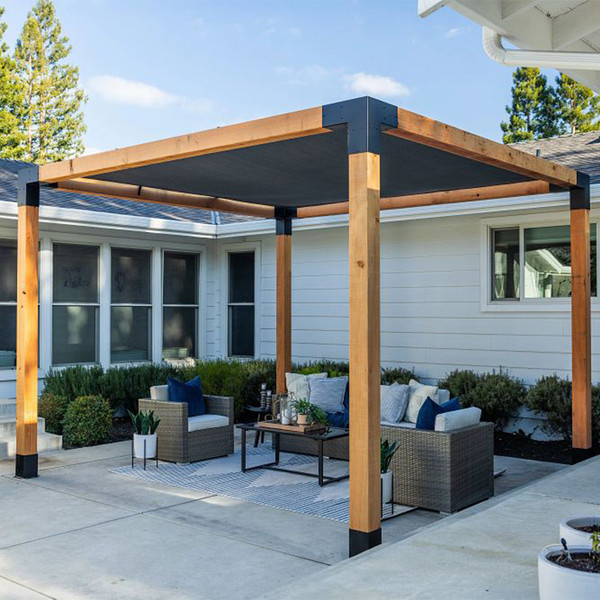

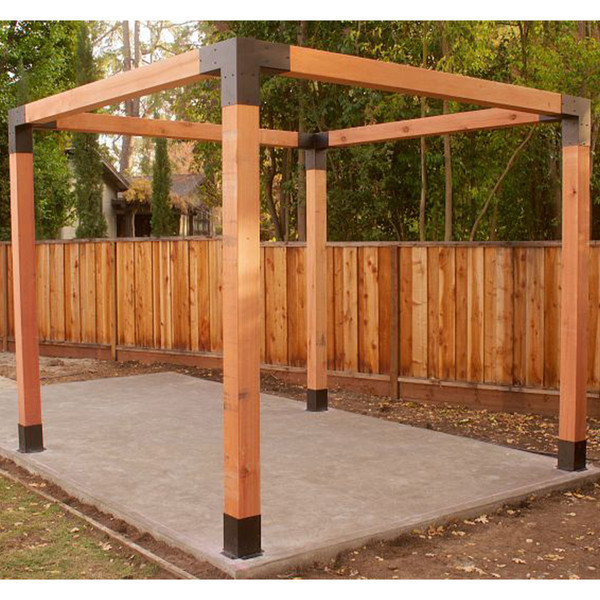

• Pergola and gazebo beam connections
• Outdoor shade and arbor structures
• Patio covers and trellis framing
• Post-to-beam joints requiring a modern aesthetic
