Description

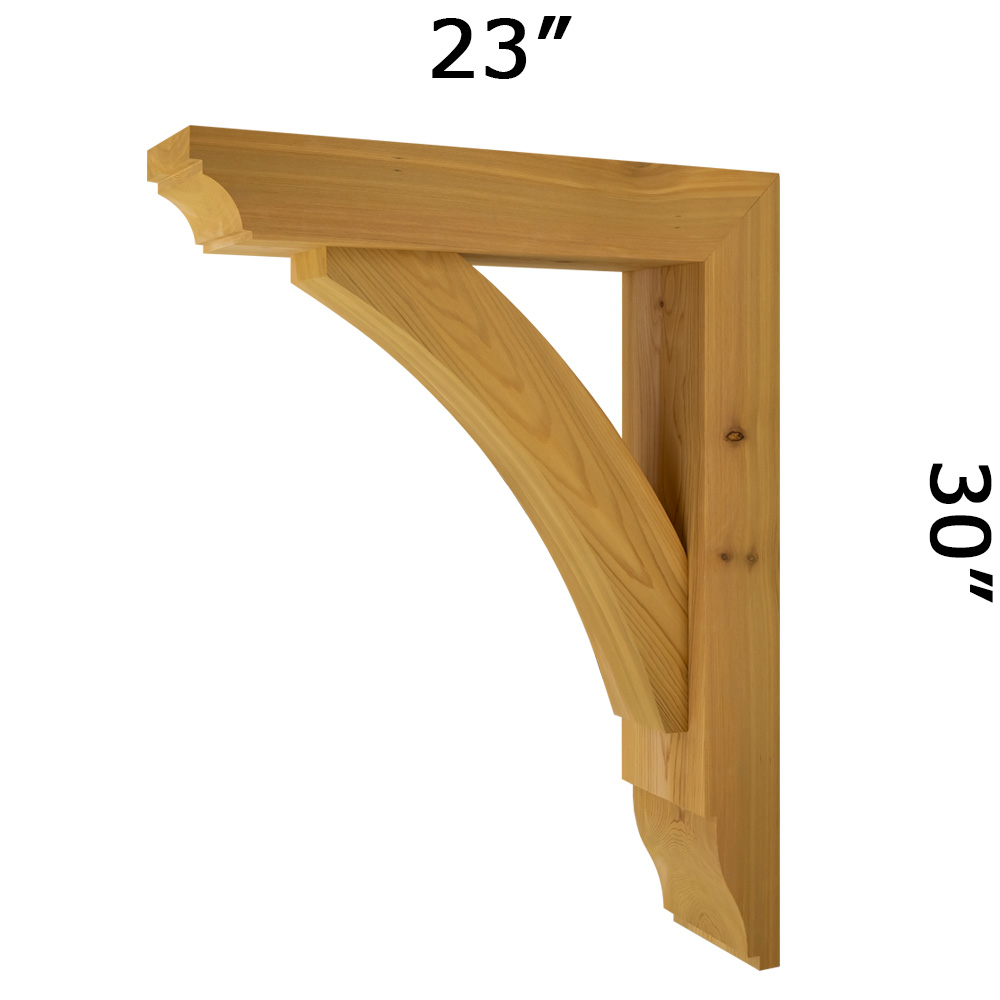

Our Wood Bracket 02T21 balances a compact 23" projection with a taller 30" rise, creating a refined, proportional profile for entries, canopies, and pergola returns. Crafted from Western Red Cedar, it delivers natural durability, dimensional stability, and a warm architectural presence indoors or out.
Built for longevity with waterproof adhesive and exterior-grade joinery, and reinforced with structurally sound Timber Screw SDWS22 Exterior Grade fasteners for added strength and service life. Choose a smooth-planed surface for a clean, contemporary look or a rough-sawn texture for classic timber character.
Applications
- Porch and entry canopies
- Trellises and pergolas
- Garage door roof overhangs
- Decorative eaves and returns
- Architectural timber accents
Specifications
Projection 23", Height 30", Thickness 5 1/2", Brace Thickness 3 1/2".
Options
Available in Western Red Cedar (standard), Engineered Western Red Cedar, Douglas Fir, Eastern White Pine, Cypress, and Redwood. Offered in smooth or rough-sawn finishes. Custom sizing and appearance options available via the Quick Custom Work Form.
Additional Information
Brace setting: Recessed 1". Body timber: 3 1/2" × 5 1/2" (nominal). Natural grain and color variations expected. Ships ready for paint or stain. Verify substrate and anchoring requirements prior to installation.
Product Details
Quick Custom Work Form
Need a different Projection, Height, Thickness, or Wood Species? Use this form to request your custom dimensions. Our team will review your details and respond with pricing and lead time. For larger projects, please use our Custom Work Form.
Specifications: Projection 23", Height 30", Thickness 5 1/2", Brace Thickness 3 1/2". Tip: Select As Listed (No Change) in the form if you’re keeping these dimensions.
