Description
Our Wood Bracket 02T7 blends structural integrity with compact architectural elegance. Handcrafted from genuine Western Red Cedar, this smaller companion to the Wood Bracket 02T4 is designed for projects needing an 18" projection while maintaining the same strength and style. Its 28" height and balanced proportions make it ideal for lighter overhangs or designs requiring a refined visual scale.
Each Timber Build bracket is precisely assembled with exterior-grade screws and waterproof adhesive, ensuring long-term performance in outdoor environments. The Western Red Cedar body timber features tight grain and rich natural color variations that highlight the character of the wood. Choose between a smooth-planed surface for a clean, contemporary finish or a rough-sawn texture for a traditional, handcrafted look.
Western Red Cedar’s natural resistance to decay and insects makes this bracket a dependable choice for both exterior and interior architectural use. The lighter projection keeps the bracket visually balanced while providing dependable support for awnings, canopies, and trellis systems.
Applications
- Porch and entry canopies
- Garage door and window overhangs
- Decorative trellises and pergolas
- Roof eaves and timber accents
- Countertop and shelf support (light to medium load)
Specifications

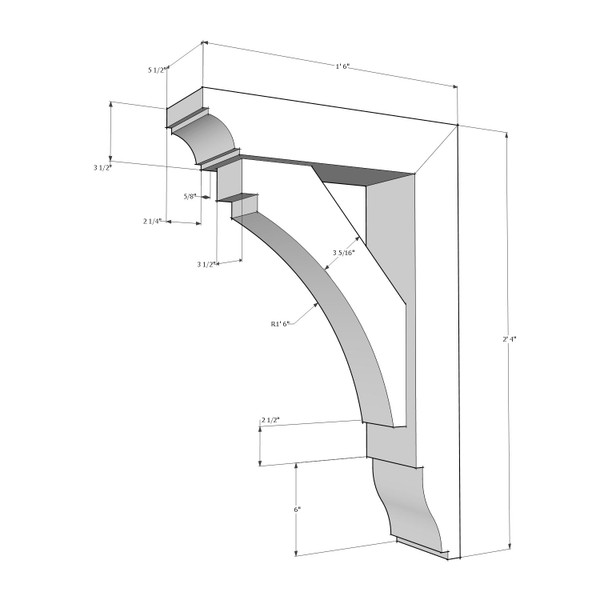

Projection 18", Height 28", Thickness 5 1/2", Brace Thickness 3 1/2".
Tip: Select “As Listed (No Change)” in the Quick Custom Work Form if you plan to keep these dimensions.
Options
Available in Western Red Cedar (standard), Engineered Western Red Cedar, Douglas Fir, Eastern White Pine, Cypress, and Redwood. Choose smooth or rough-sawn finishes to match your project’s style. Custom measurements are available through Timber Build’s Quick Custom Work Form.
Additional Information
Brace Setting: Recessed 1".
Body Timber: 3 1/2" × 5 1/2" (nominal).
Each bracket is handmade and may include natural grain and texture variations. Ships ready for paint or stain. Recommended for overhangs approximately 18" Up.
Designed, built, and finished in Lilburn, GA, Timber Build products are crafted with pride to enhance both the strength and beauty of your home or commercial project.
Product Details
Quick Custom Work Form
Need a different Projection, Height, Thickness, or Wood Species? Use this form to request your preferred custom dimensions. Our team will review your details and reply with pricing and lead time. For larger or more detailed projects, please use our full Custom Work Form.
Specifications: Projection 18", Height 28", Thickness 5 1/2", Brace Thickness 3 1/2".
3D Model
CAD & SketchUp Downloads
Usage Notice: All drawings and models are © Timber Build, Inc. Provided for reference only to specify Timber Build products for purchase. Manufacturing, fabrication, construction, distribution, reverse engineering, or any other use is prohibited without prior written permission. Licensed design professionals may include these files in plan sets solely to identify Timber Build products for a client’s purchase. Specifications subject to change without notice. All rights reserved.
You’ve accepted the Usage Notice. Files may be used only to reference Timber Build products for purchase. Any other use remains prohibited without prior written permission. Gray buttons after unlocking indicate unavailable files—contact Customer Support for assistance.
Download Drawings
