Description
Product Name delivers an extra-large, architectural-scale presence for deep roof lines and long spans. With a Projection projection and Height height, it provides bold visual structure while keeping proportions clean and balanced. Crafted from Species, it blends dependable strength with the warmth and character of natural timber.
Each bracket is precision-joined using exterior-grade screws and waterproof adhesive for long-term outdoor performance. Constructed with structurally sound Timber Screw SDWS22 Exterior Grade fasteners for added strength and longevity. Choose a smooth-planed surface for a clean look or a rough-sawn texture for traditional timber character.
Applications
- Oversized porch and entry canopies
- Long-span porch returns and timber canopies
- Heavy pergola/outlooker work
- Deep eave extensions and roof returns

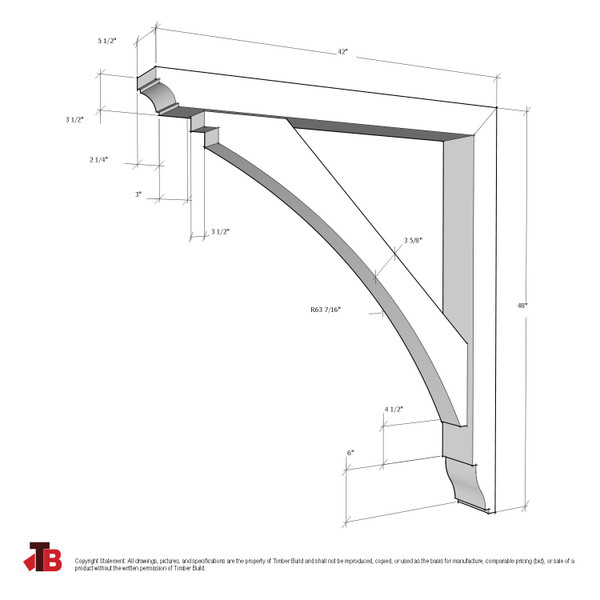

Specifications
Projection Projection, Height Height, Thickness Thickness, Brace Thickness Brace Thickness.
Options
Available in Western Red Cedar (standard), Engineered Western Red Cedar, Douglas Fir, Eastern White Pine, Cypress, Redwood, and more. Choose a smooth or rough-sawn finish. To explore all available options, visit our Product Options page.
Custom dimensions and additional wood species can be requested using the Quick Custom Work Form available on this page, or by contacting Customer Support. For more complex products or to start a project, please use our Project Form or reach out to Customer Support for assistance.
Materials & Craftsmanship
Brace setting: Brace Setting. Body timber: Body Timber (nominal). Each Timber Build piece is handcrafted from real wood, showcasing natural grain and color variations—hallmarks of its authenticity and character. These organic differences make every item unique and add depth to its appearance.
Care & Finish
To ensure longevity and protect the wood, we recommend finishing your piece with a high-quality exterior coating. For best results, follow our care and finishing guide: How to Finish Cedar .
Product Details
Quick Custom Work Form
Need a different Projection, Height, Thickness, Brace Thickness, or Wood Species? Use this form to request your preferred custom dimensions. Our team will review your details and reply with pricing and lead time. For larger or more detailed projects, please use our full Custom Work Form .
Specifications for Product Name: Projection Projection, Height Height, Thickness Thickness, Brace Thickness Brace Thickness. Tip: Select As Listed (No Change) in the form if you’re keeping these dimensions.
3D Model
CAD & SketchUp Downloads
Usage Notice: All drawings and models are © Timber Build, Inc. Provided for reference only to specify Timber Build products for purchase. Manufacturing, fabrication, construction, distribution, reverse engineering, or any other use is prohibited without prior written permission. Licensed design professionals may include these files in plan sets solely to identify Timber Build products for a client’s purchase. Specifications subject to change without notice. All rights reserved.
You’ve accepted the Usage Notice. Files are provided solely for referencing Timber Build products intended for purchase. Any other use is prohibited without prior written permission. If a gray button appears after unlocking, it means that specific file is not yet available. To request CAD drawings, please use our online form or contact Customer Support for assistance.
Download Drawings
