Description

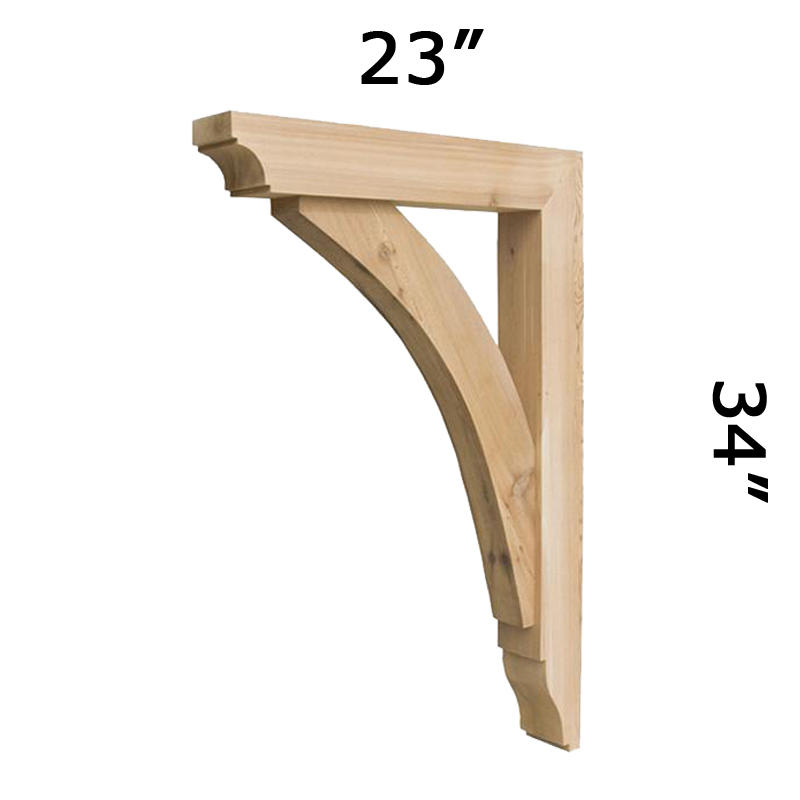

Our Wood Bracket 02T13 blends clean lines with dependable support for medium–large roof returns and canopies. Crafted from genuine Western Red Cedar, it offers the strength you need with the warm, natural character designers love. With a 23" projection and 34" height, it delivers confident proportion for entries, trellises, and extended eaves.
Each bracket is precision-joined using exterior-grade screws and waterproof adhesive for long-term outdoor performance. Constructed with structurally sound Timber Screw SDWS22 Exterior Grade fasteners for added strength and longevity. Choose a smooth-planed surface for a refined look or a rough-sawn texture for traditional timber character.
Applications

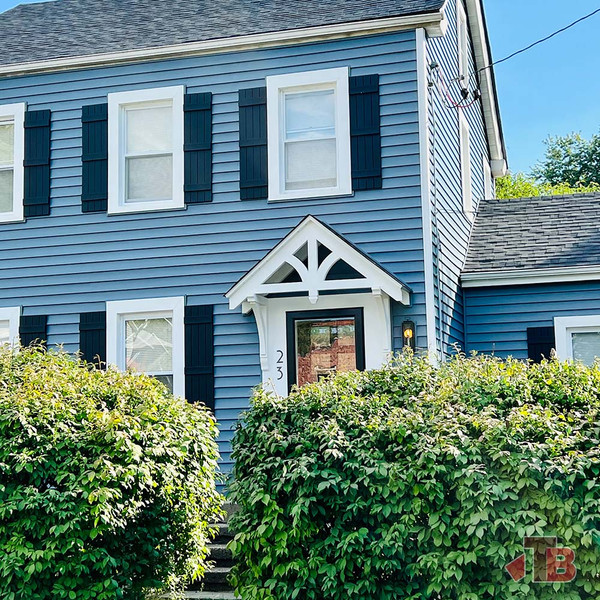

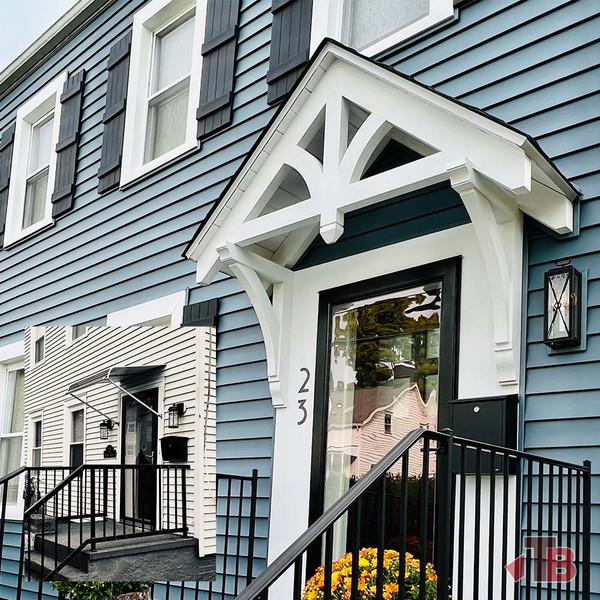

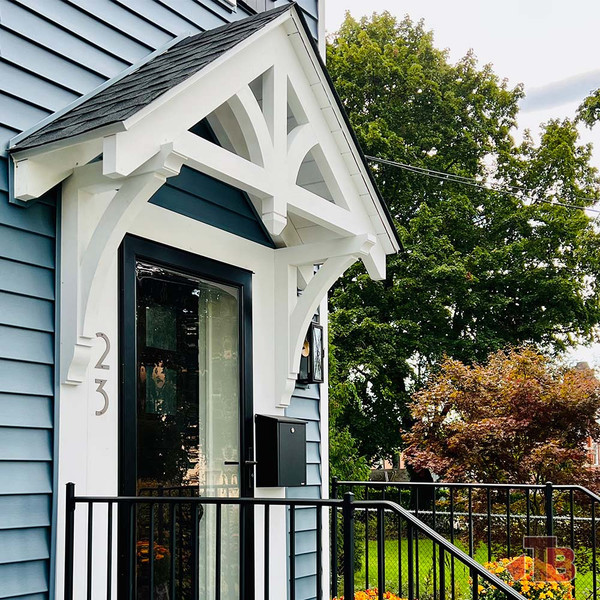

- Porch and entry canopies
- Garage door roof overhangs
- Trellises and pergolas
- Decorative eaves and roof returns
- Architectural timber accents
Specifications

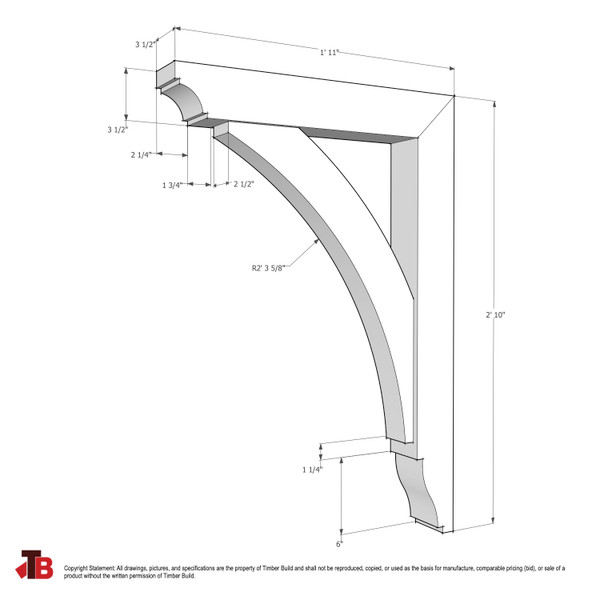

Projection 23", Height 34", Thickness 3 1/2", Brace Thickness 2 1/2".
Options
Available in Western Red Cedar (standard), Engineered Western Red Cedar, Douglas Fir, Eastern White Pine, Cypress, and Redwood. Order smooth or rough-sawn to match your finish. Custom projections, heights, and brace dimensions available via the Quick Custom Work Form.
Additional Information
Brace setting: Recessed 1/2". Body timber: 3 1/2" × 3 1/2" (nominal). Natural grain and color variations are expected. Ships ready for paint or stain. Verify substrate and anchoring requirements prior to installation.
Product Details
Quick Custom Work Form
Need a different Projection, Height, Thickness, or Wood Species? Use this form to request your preferred custom dimensions. Our team will review your details and reply with pricing and lead time. For larger or more detailed projects, please use our full Custom Work Form.
Specifications: Projection 23", Height 34", Thickness 3 1/2", Brace Thickness 2 1/2". Tip: Select As Listed (No Change) in the form if you’re keeping these dimensions.
3D Model
CAD & SketchUp Downloads
Usage Notice: All drawings and models are © Timber Build, Inc. Provided for reference only to specify Timber Build products for purchase. Manufacturing, fabrication, construction, distribution, reverse engineering, or any other use is prohibited without prior written permission. Licensed design professionals may include these files in plan sets solely to identify Timber Build products for a client’s purchase. Specifications subject to change without notice. All rights reserved.
You’ve accepted the Usage Notice. Files may be used only to reference Timber Build products for purchase. Any other use remains prohibited without prior written permission. Gray buttons after unlocking indicate specific files are not yet available—contact Customer Support for assistance.
Download Drawings
