Description

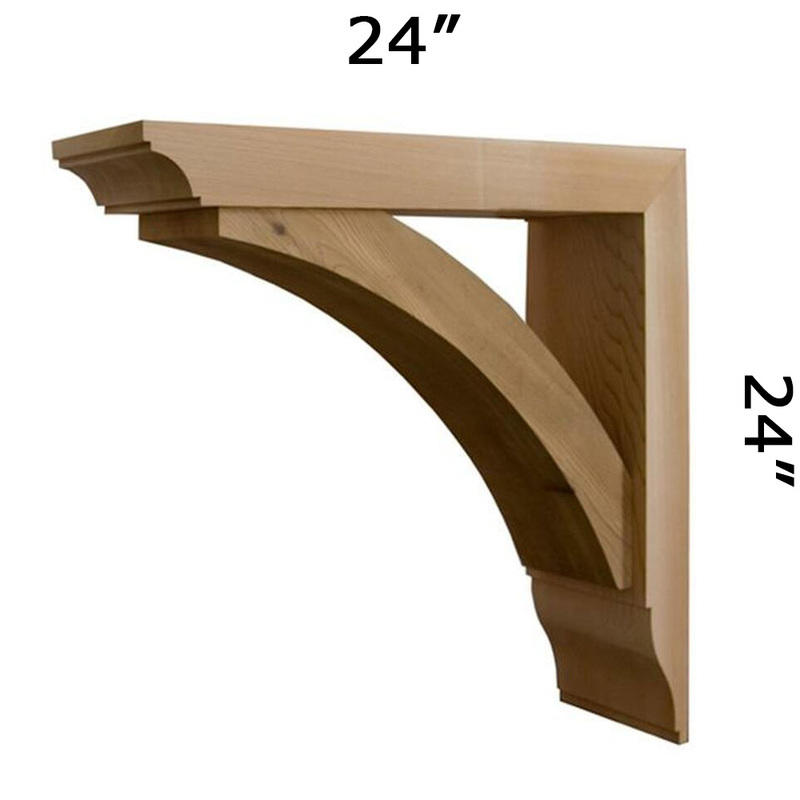

Our Wood Bracket 02T16 combines bold dimension and balanced geometry to create a strong architectural statement. Built from Western Red Cedar, it delivers the ideal mix of structural reliability and refined natural beauty—perfect for canopies, pergolas, and decorative roof extensions.
Each bracket is carefully joined with waterproof adhesive and exterior-grade fasteners for lasting performance. Constructed with structurally sound Timber Screw SDWS22 Exterior Grade fasteners for added strength and longevity. Choose a smooth-planed surface for a refined modern look or rough-sawn texture for classic timber character.
Applications
- Porch and entry canopies
- Trellises and pergolas
- Garage door roof overhangs
- Decorative eaves and roof returns
- Architectural timber accents
Specifications

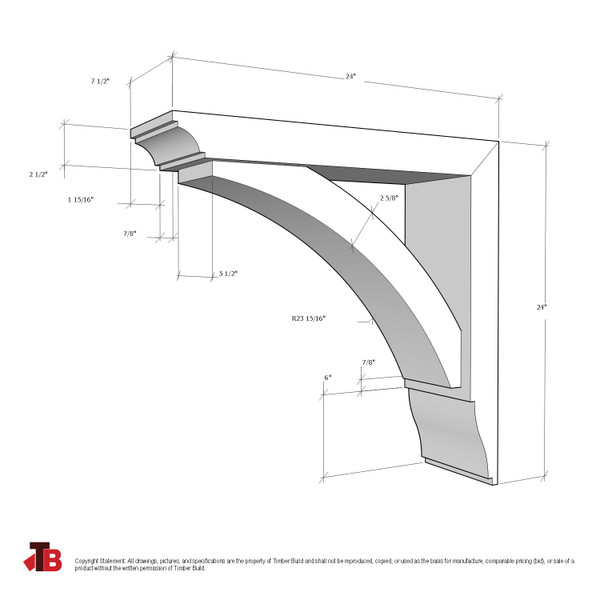

Projection 24", Height 24", Thickness 7 1/2", Brace Thickness 5 1/2".
Options
Available in Western Red Cedar (standard), Engineered Western Red Cedar, Douglas Fir, Eastern White Pine, Cypress, and Redwood. Each piece can be ordered smooth or rough-sawn to complement your finish style. Custom sizes available through the Quick Custom Work Form.
Additional Information
Brace setting: Recessed 1". Body timber: 2 1/2" × 7 1/2" (nominal). Natural grain and color variation expected. Ships ready for paint or stain. Verify substrate and anchoring details before installation.
Product Details
Quick Custom Work Form
Need a different Projection, Height, Thickness, or Wood Species? Use this form to request your preferred custom dimensions. Our team will review your details and reply with pricing and lead time. For larger or more detailed projects, please use our full Custom Work Form.
Specifications: Projection 24", Height 24", Thickness 7 1/2", Brace Thickness 5 1/2". Tip: Select As Listed (No Change) in the form if you’re keeping these dimensions.
3D Model
CAD & SketchUp Downloads
Usage Notice: All drawings and models are © Timber Build, Inc. Provided for reference only to specify Timber Build products for purchase. Manufacturing, fabrication, construction, distribution, reverse engineering, or any other use is prohibited without prior written permission. Licensed design professionals may include these files in plan sets solely to identify Timber Build products for a client’s purchase. Specifications subject to change without notice. All rights reserved.
You’ve accepted the Usage Notice. Files may be used only to reference Timber Build products for purchase. Any other use remains prohibited without prior written permission. Gray buttons after unlocking indicate specific files are not yet available—contact Customer Support for assistance.
Download Drawings
