Description

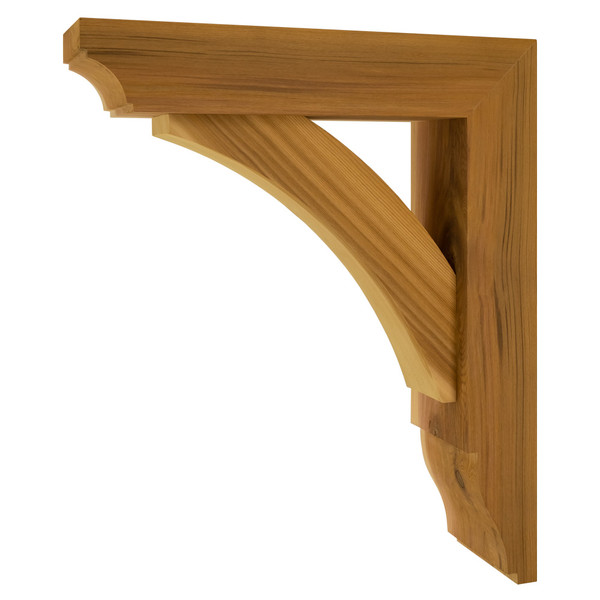

Our Wood Bracket 02T19 brings balanced proportions and reliable strength to a wide range of architectural applications. Built from Western Red Cedar, it combines natural durability with a refined handcrafted look—perfect for porch roofs, canopies, trellises, and exterior timber accents.
Each bracket is precisely assembled using waterproof adhesive and exterior-grade joinery for maximum structural integrity. Constructed with structurally sound Timber Screw SDWS22 Exterior Grade fasteners for added strength and longevity. Choose between a smooth-planed surface for modern appeal or a rough-sawn texture for classic timber character.
Applications
- Porch and entry canopies
- Trellises and pergolas

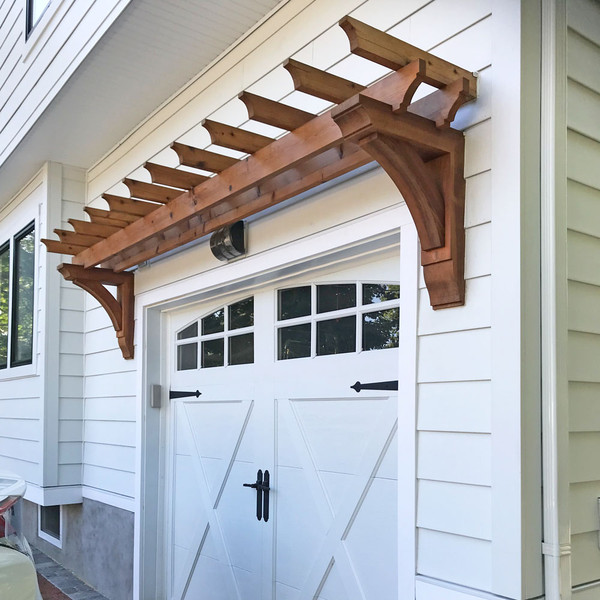

- Garage door overhangs
- Decorative roof returns
- Architectural timber details
Specifications

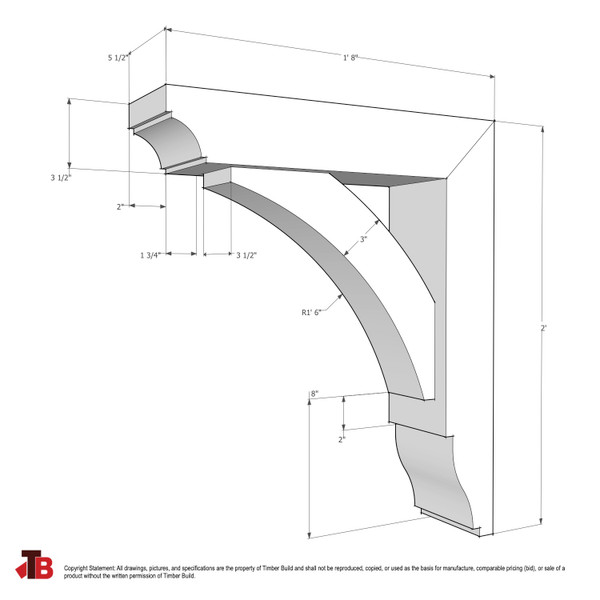

Projection 20", Height 24", Thickness 5 1/2", Brace Thickness 3 1/2".
Options
Available in Western Red Cedar (standard), Engineered Western Red Cedar, Douglas Fir, Eastern White Pine, Cypress, and Redwood. Offered in smooth or rough-sawn finishes to complement your design. Custom sizes are available through the Quick Custom Work Form.
Additional Information
Brace setting: Recessed 1". Body timber: 3 1/2" × 5 1/2" (nominal). Natural grain and color variation expected. Ships ready for paint or stain. Confirm mounting and anchoring details before installation.
Product Details
Quick Custom Work Form
Need a different Projection, Height, Thickness, or Wood Species? Use this form to request your preferred custom dimensions. Our team will review your details and reply with pricing and lead time. For larger or complex projects, please use our Custom Work Form.
Specifications: Projection 20", Height 24", Thickness 5 1/2", Brace Thickness 3 1/2". Tip: Select As Listed (No Change) in the form if you’re keeping these dimensions.
3D Model
CAD & SketchUp Downloads
Usage Notice: All drawings and models are © Timber Build, Inc. Provided for reference only to specify Timber Build products for purchase. Manufacturing, fabrication, construction, distribution, reverse engineering, or any other use is prohibited without prior written permission. Licensed design professionals may include these files in plan sets solely to identify Timber Build products for a client’s purchase. Specifications subject to change without notice. All rights reserved.
You’ve accepted the Usage Notice. Files may be used only to reference Timber Build products for purchase. Any other use remains prohibited without prior written permission. Gray buttons after unlocking indicate specific files are not yet available—contact Customer Support for assistance.
Download Drawings
